MS6335
16-Bit Stereo Audio DAC integrated HP Driver with Volume Control
Low Voltage, Low Power Consumption
Flexibility Power Management, Mute Function
Audio format : Right justified, I2S
Control
Interface : I2C
|
|
Datasheet
QFN16
SSOP16
SGS Report
MS6335
|

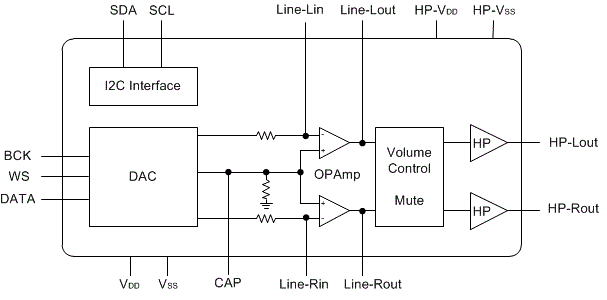

The MS6335 is a 16-bits voltage-output Digital-to-Analog
Converter (DAC) integrated class AB stereo headphone driver with volume
control. It is fabricated in a CMOS process and features extremely low
power dissipation, small package size and easy application. The accuracy
of the matched coarse current sources, combined with the unique symmetrical
decoding method, preclude zero-crossing distortion and ensures high quality
audio reproduction.
The MS6335 has good feature for portable equipment, these features
include the low voltage operation, low power consumption, flexible power
management, component less and small package SSOP16,QFN16, make the MS6335
ideally suited for use in portable digital audio equipments.
|
|
