Products > Audio Processor(Low Cost) > MS6712L

MS6712L
4 Stereo Inputs / 4-Channel Outputs Audio Processor

4 Stereo Inputs and 4-Channel Outputs
Volume, Tone, Balance, Fader, Loudness, and Selectable Input Gain

Datasheet

SOP32
300mil

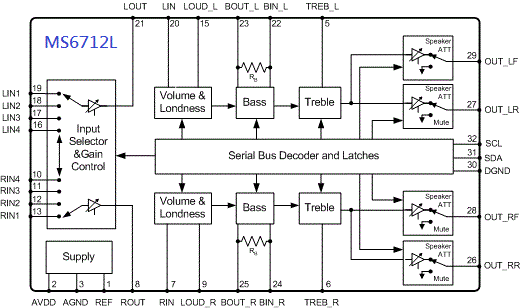

Block Diagram

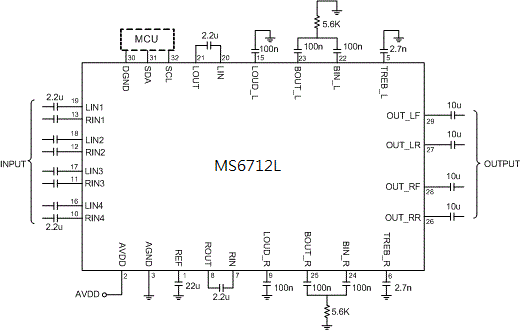

Application Circuit

Features

‧Operation range : 2.7V~6.5V
‧4 stereo inputs with selectable input gain
‧4 independent speaker controls for fader and balance
‧Tone controls (treble and bass) and loudness function
‧Independent mute function
‧Volume control in 1.25 dB/step
‧I2C interface
‧Components less and good PSRR
‧Housed in SOP32 packages

Application

‧Portable audio device
‧Car stereo audio
‧Hi-Fi audio system
‧Cross-reference: MS6712

Description

The MS6712L is a 4 stereo inputs/4-channel outputs digital control audio processor for the low voltage operation. Volume, tone (bass and treble), balance (left/right), and fader (front/rear) processor are incorporated into a single chip. The MS6712L also has the loudness function and selectable input gain. These functions can be built a Hi-Fi audio system easily. All functions are programmable via the serial I2C bus. The default states of the chip as the power is on are: the volume is -78.75dB, the stereo 4 is selected, all the speakers are mute and the gains of the input stage, the bass and the treble are 0dB.
