Products > Audio DAC > MS6313

MS6313
16-bit Stereo Audio DAC

Voltage Output, Excellent PSRR

Datasheet

SOP8

SGS Report

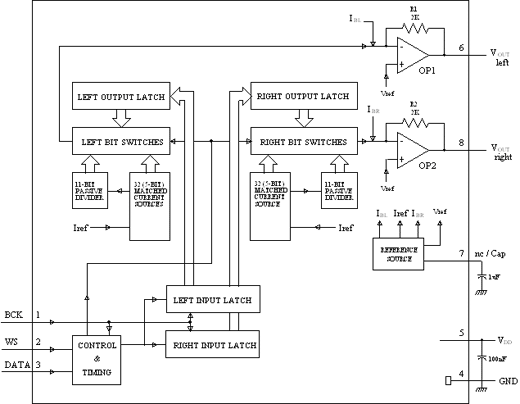

Block Diagram

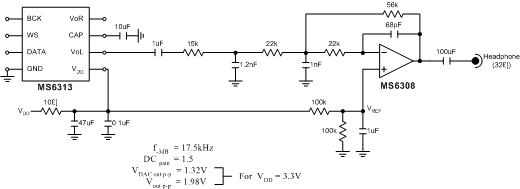

Application Circuit

Features

‧Operation range: 2.7V~6.5V
‧Excellent Power Supply Rejection Ratio(PSRR)
‧Output voltage swing is proportional to supply voltage (VOPP=0.4VDD)
‧Compatible with most of the Japanese input formats; time multiplexed, two's complement, TTL
(Right justified)
‧Fast setting time permits 2*, 4*, and 8* oversampling(serial input) or double speed operation at
4* oversampling
‧Space saving package SOP8

Application

‧MP3, PDA
‧Portable Digital Audio.
‧Cross-reference: TDA1311

Description

The MS6313 is a 16-bit voltage-output Digital-to-Analog Converter(DAC). The MS6313 is with excellent Power Supply Rejection Ratio(PSRR). It is fabricated in a 0.8*m CMOS process and features extremely low power dissipation, small package size and easy application. The accuracy of the matched coarse current sources, combined with the unique symmetrical decoding method, preclude zero-crossing distortion and ensures high quality audio reproduction. These unique features, combined with its exceptional performance, make the MS6313 ideally suited for use in digital audio equipment. MS6313 is pin and function compatible with the Philips, TDA1311.
