MS6309/MS6310 Low Cost Stereo Audio DAC Cost Effective |
|
¡@ | ||||||||||||||||||||||||
¡@ | ||||||||||||||||||||||||||
Block Diagram | ||||||||||||||||||||||||||
¡@ | ||||||||||||||||||||||||||
¡@ | ||||||||||||||||||||||||||

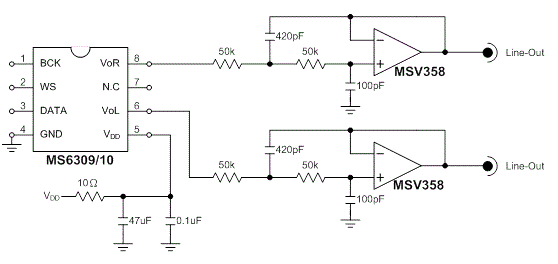

Application Circuit | ||||||||||||||||||||||||||
¡@ | ||||||||||||||||||||||||||
¡@ | ||||||||||||||||||||||||||
Features | ||||||||||||||||||||||||||
¡E Cost effective ¡E Low distortion ¡E No zero crossing distortion ¡E Output voltage swing is proportional to supply voltage (VOPP=VDD/2) ¡E Fast setting time permits 2*, 4*, and 8* oversampling (serial input) or double speed operation at 4* oversampling
¡E
Audio Format¡GI2S(MS6309) ¡E Space saving package SOP8, MSOP8, DFN8. ¡@ |
¡@ | |||||||||||||||||||||||||
¡@ | ||||||||||||||||||||||||||
Application | ||||||||||||||||||||||||||
•Multimedia system •MP3, PDA, Portable Digital Audio. •Set top box. |
¡@ | |||||||||||||||||||||||||
¡@ | ||||||||||||||||||||||||||
Description | ||||||||||||||||||||||||||
The MS6309/10 is a voltage-output Digital-to-Analog Converter (DAC). The accuracy of the weight current sources, combined with the unique symmetrical decoding method, preclude zero-crossing distortion and ensures high quality audio reproduction. As the power is up, the initial registers of the DAC are 0000Hex, so the DAC output will beVdd/2. | ||||||||||||||||||||||||||
