MS6610
16-bit Stereo Audio DAC

Current Output , Right justified

Datasheet

SOP8

SGS Report

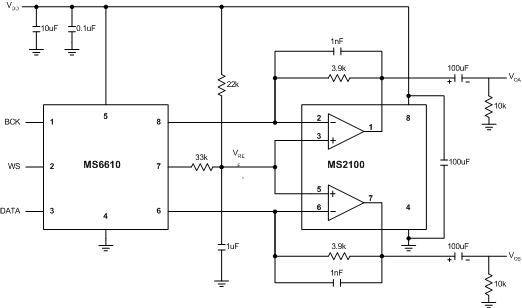

Application Circuit

Features

‧Operation range: 2.7V~6.5V
‧Current output
‧Output and bias current are proportional to supply voltage
‧Low total harmonic distortion
‧Wide dynamic range(16-bit resolution)
‧Internal bias current ensures maximum dynamic range
‧Compatible with most of the Japanese input formats; time multiplexed, two's complement, TTL
    (Right justified)
‧Fast setting time permits 2*, 4*, and 8* oversampling(serial input) or double speed operation at
    4* oversampling
‧Space saving package SOP8

Application

‧VCD player
‧Multimedia system
‧Cross-reference: TDA1545

Description

The MS6610 is a 16-bit current-output Digital-to-Analog Converter(DAC). The MS6610 is fabricated in a CMOS process and features extremely low power dissipation, small package size and ease of application. The accuracy of the matched coarse current sources, combined with the unique symmetrical decoding method, preclude zero-crossing distortion and ensures high quality audio reproduction. These unique features, combined with its exceptional performance, make the MS6610 ideally suited for use in digital audio equipment. MS6610 is pin and function compatible with the Philips, TDA1545.
