MS6337
16-bit Stereo Audio DAC & Mono 1.8W Power Amplifiers
Plus Stereo Headphone Function

The minimum HIGH voltage of digital clocks(WS,DATA and BCK)
and the control inputs can be 1.6V at Vdd = 5V
Audio format : I2S, Right justified
Component less

Datasheet

SSOP24

QFN24
(4x4x0.8mm)

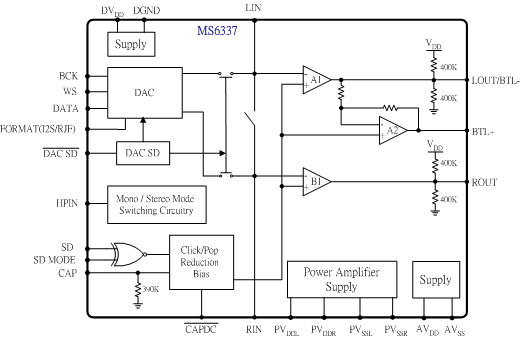

Block Diagram

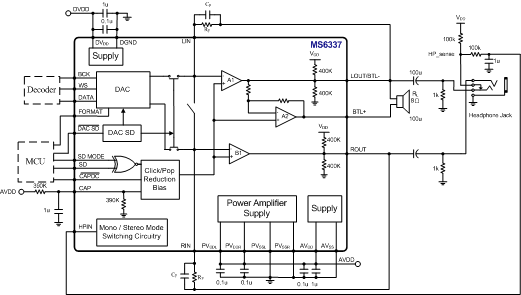

Application Circuit

Features

‧Operation range: 2.7V~6.5V
‧16-bit resolution audio DAC
‧Output mode : Speaker( BTL)/Headphone(SE)
‧Output power
    RL=4Ω, 1.8W at 5V, 0.72W at 3.3V, 450mW at 2.7V
    RL=8Ω, 1.2W at 5V, 0.52W at 3.3V, 330mW at 2.7V
‧SE Output power, THD+N<0.1%
    RL=8Ω, 300mW at 5V, 125mW at 3.3V, 85mW at 2.7V
    RL=32Ω, 90mW at 5V, 43mW at 3.3V, 25mW at 2.7V
‧Audio format : I2S, Right justified
‧Excellent Power Supply Rejection Ratio(PSRR)
‧The minimum HIGH voltage of digital clocks(WS,DATA and BCK)and
    the control inputs can be 1.6V at Vdd = 5V
‧Component less
‧Shutdown function
‧Housed in SSOP24(150mil), QFN24(4x4x0.8mm)package

Application

‧Multimedia system
‧Portable Digital Audio

Description

The MS6337 is a 16-bits voltage-output Digital-to-Analog Converter (DAC) integrated class AB stereo headphone driver and mono speaker power amplifier. It can drive 1.8W of continuous average power into a mono 4Ω bridged-tied (BTL) speaker or 2 * 90mW into stereo 32Ω single ended (SE) headphone. The 16-bit DAC supports popular formats as I2S, Right Justified.

The MS6337 is with the excellent Power Supply Rejection Ratio(PSRR) and features extremely low power dissipation, small package size and easy application. The accuracy of the matched coarse current sources, combined with the unique symmetrical decoding method, preclude zero-crossing distortion and ensures high quality audio reproduction. These unique features, combined with its exceptional performance, make the MS6337 ideally suited for use in digital audio equipment.
