> Audio Processor > MS6714 |
|||||||||||||||||||
 |
||||||||||||||||||||
|
MS6714 4 Stereo Inputs / 1 Stereo Output Audio Processor 4 Stereo Inputs and 1 Stereo Output Volume, Tone, Balance, Loudness, and Selectable Input Gain |
|
Datasheet
 SOP28 300mil
 |
||||||||||||||||||
|
||||||||||||||||||||

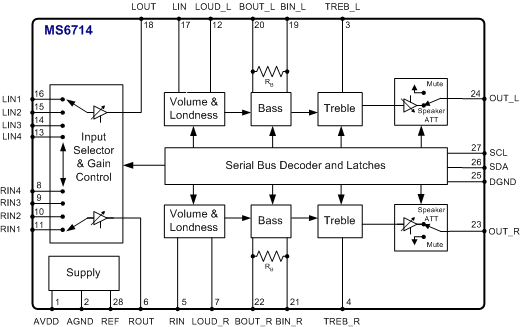

 Block
Diagram |
||||||||||||||||||||
|
||||||||||||||||||||
|
||||||||||||||||||||
|
||||||||||||||||||||

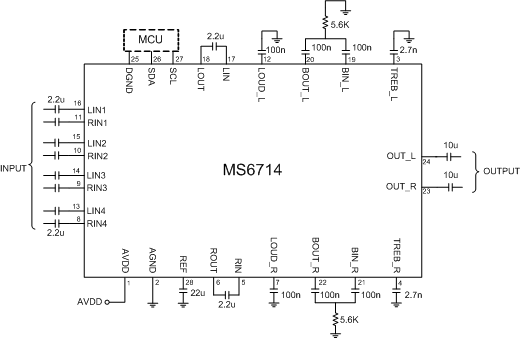

| Application
Circuit |
||||||||||||||||||||
 |
||||||||||||||||||||
|
||||||||||||||||||||
| Features |
||||||||||||||||||||
|
||||||||||||||||||||
| ¡EOperation range : 2.7V~5V ¡E4 stereo inputs with selectable input gain ¡E2 independent speaker controls for balance ¡ETone controls (treble and bass) and loudness function ¡EIndependent mute function ¡EVolume control in 1.25 dB/step ¡EI2C interface ¡EComponents less and good PSRR ¡EHoused in SOP28, SSOP28 packages |
||||||||||||||||||||
|
||||||||||||||||||||
| Application |
||||||||||||||||||||
|
||||||||||||||||||||
| ¡EPortable audio device ¡ECar stereo audio ¡EHi-Fi audio system ¡ECross-reference: PT2314 |
||||||||||||||||||||
|
||||||||||||||||||||
| Description |
||||||||||||||||||||
|
||||||||||||||||||||
| The MS6714 is a 4 stereo inputs/2-channel outputs digital control audio processor for the low voltage operation. Volume, tone (bass and treble), and balance (left/right) processor are incorporated into a single chip. The MS6714 also has the loudness function and selectable input gain. These functions can be built a Hi-Fi audio system easily. All functions are programmable via the serial I2C bus. The default states of the chip as the power is on are: the volume is -78.75dB, the stereo 4 is selected, all the speakers are mute and the gains of the input stage, the bass and the treble are 0dB. | |
|||||||||||||||||||
|
||||||||||||||||||||
|
