MS6720 3 Stereo Inputs / 4-Channel Outputs Audio Processor 3 Stereo Inputs and 4-Channel Outputs Volume, Balance, Fader and Selectable Input Gain |
|
Datasheet
 SOP20 300mil
 |
||||||||||||||||||
|
||||||||||||||||||||

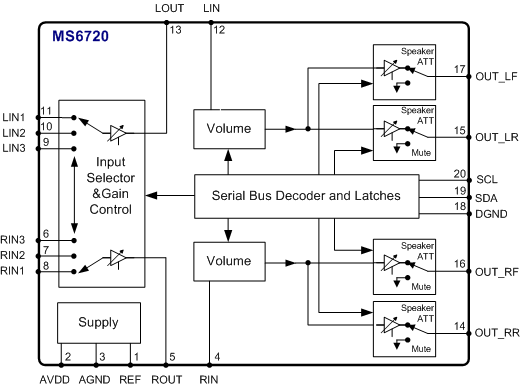

 Block
Diagram |
||||||||||||||||||||
|
||||||||||||||||||||
|
||||||||||||||||||||
|
||||||||||||||||||||
| Application

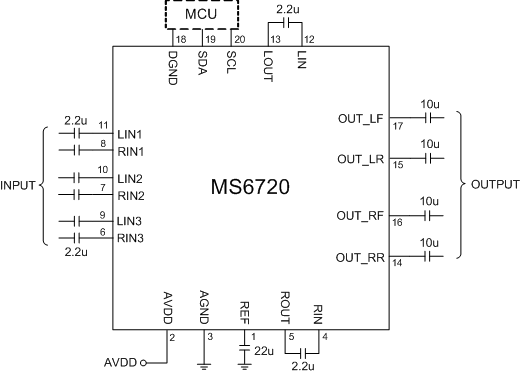

Circuit |
||||||||||||||||||||
 |
||||||||||||||||||||
|
||||||||||||||||||||
| Features |
||||||||||||||||||||
|
||||||||||||||||||||
| ¡EOperation range : 2.7V~5V ¡E3 stereo inputs with selectable input gain ¡E4 independent speaker controls for fader and balance ¡EIndependent mute function ¡EVolume control in 1.25 dB/step ¡EI2C interface ¡EComponents less and good PSRR ¡EHoused in SOP20, SSOP20 packages |
||||||||||||||||||||
|
||||||||||||||||||||
| Application |
||||||||||||||||||||
|
||||||||||||||||||||
| ¡EPortable audio device ¡EHi-Fi audio system ¡ECross-reference: PT2313-20 |
||||||||||||||||||||
|
||||||||||||||||||||
| Description |
||||||||||||||||||||
|
||||||||||||||||||||
| The MS6720 is a 3 stereo inputs/4-channel outputs digital control audio processor for the low voltage operation. Volume, balance (left/right), and fader (front/rear) processor are incorporated into a single chip. The MS6720 also has selectable input gain. All functions are programmable via the serial I2C bus. The default states of the chip as the power is on are: the volume is -78.75dB, the stereo 4 is selected, all the speakers are mute and the gains of the input stage are 0dB. The stereo 4 is connected internally, but not available on pins. | |
|||||||||||||||||||
|
||||||||||||||||||||
|
