MS6272
Volume Controller With Soft-Step IC Stereo Input available to Single-Ended/differential Mode Low voltage, Volume Controller With Soft Step. Input Gain 0~+15dB, Volume Controller -79dB ~ +15dB. |
|
|||||||||||||||||||||||

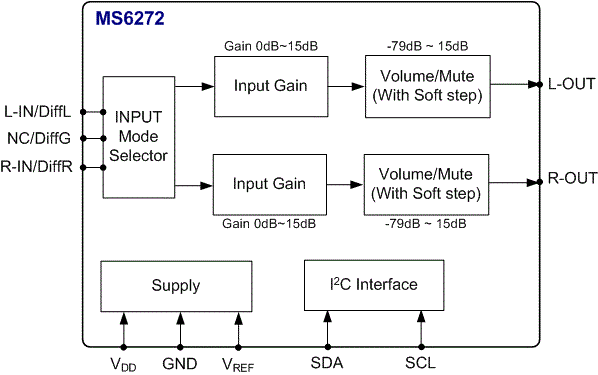

Block Diagram | ||||||||||||||||||||||||

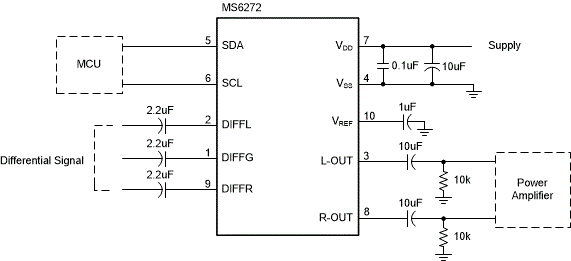

Application Circuit | ||||||||||||||||||||||||
Features | ||||||||||||||||||||||||
¡E Operation range: 2.5V~6.5V. ¡E Soft step volume: -79dB ~ +15dB. ¡E Input Gain: 0dB ~ +15dB. ¡E Low power consumption. ¡E Good PSRR and low pop noise. ¡E I2C interface. ¡E Housed in 10 pin MSOP package. |
||||||||||||||||||||||||
Application | ||||||||||||||||||||||||
¡E Multimedia system. ¡E Hi-Fi audio system. ¡E Bluetooth. ¡E DAB |
||||||||||||||||||||||||
Description | ||||||||||||||||||||||||
The MS6272 is a stereo audio volume controller IC with stereo input( Single-End/differential), soft step control with programmable blend times. It uses CMOS technology specially for the low voltage application with low noise, rail-to-rail output. | ||||||||||||||||||||||||
